RAPIDS THEATRE
NIAGARA FALLS, NEW YORK
CAPACITY : 1700
A) GROUND FLOOR : 1500
B) BALCONY : 200
STAGE SIZE : 30' X 44'
DRUM RISERS: TWO 8' X 8' MAY BE SPLIT TO 4' X 8'
AUDIO SPECS JANUARY 2010
FOH :
YAMAHA M7C X 48 DIGITAL BOARD
YORKVILLE EL210T LINE ARRAY, FLOWN FROM CEILING, 8 PER SIDE
YORKVILLE LS2101 SUBS, 4 PER SIDE
YORKVILLE C1890B FRONT FILL, 2 IN CENTER ON STAGE
YORKVILLE AP6040 ON SUBS, AP4020 MIDS, AP2020 HIGHS, AP800 FILL
VPC PRO AUDIO, DLMS 4080 PROCESSOR
MONITORS :
YAMAHA M7C X 48 DIGITAL, 15 MIXES WITH CUE
8) YORKVILLE E152 BIAMP MONITORS (2" X 15")
2) VPC PRO AUDIO, DLMS 4080 PROCESSORS, SET FOR 8 BIAMP MIXES
YORKVILLE AP4040 ON LOWS, AP2020 ON HIGHS
|

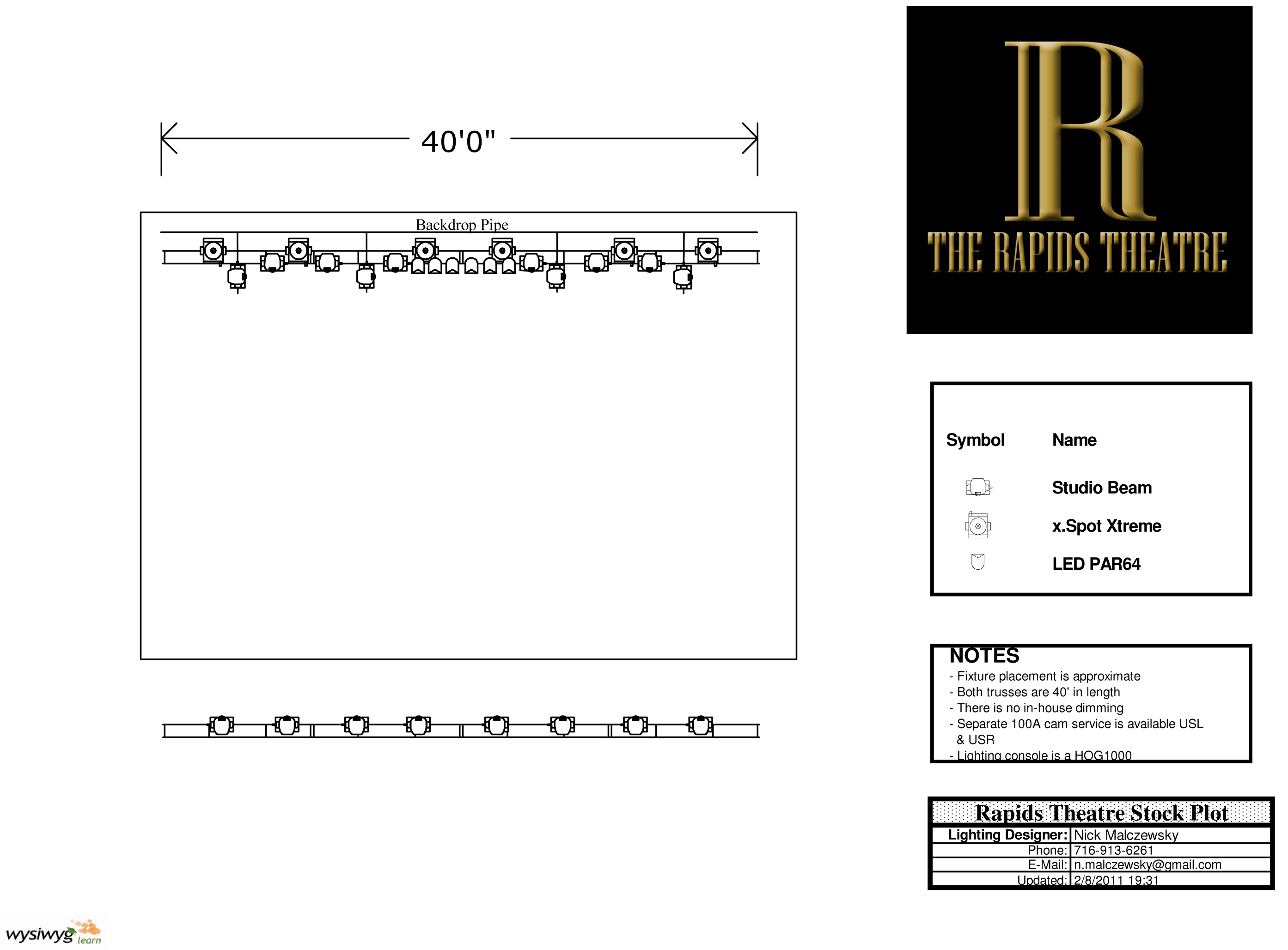

LIGHTING RIG :
LIGHT BOARD:
HOG 1000
UPSTAGE TRUSS :
HUNG APPROXIMATELY 15 FEET FROM DECK, 5 FEET DOWN STAGE OF BACK TRAVELER. SPANS ENTIRE WIDTH OF USEABLE STAGE AND HAS ONE (1) FULL LENGTH BAR EXTENDED UPSTAGE APPROXIMATELY THREE (3) FT ON TOP OF TRUSS.
UPSTAGE FIXTURES :
TEN (10) HIGH-END STUDIO BEAMS
SIX (6) HIGH-END X-SPOTS
SIX (6) LED PAR64
DOWNSTAGE TRUSS:
HUNG APPROXIMATELY FIVE (5) FT FROM DOWNSTAGE EDGE, EIGHTEEN (18) FEET FROM DECK HEIGHT. ALUMINUM TRUSS WITH NO ADDITIONAL PIPE OR BAR.
DOWNSTAGE FIXTURES:
EIGHT (8) HIGH-END STUDIO BEAMS
FOUR (4) HIGH-END X-SPOT STANDARDS, APPROXIMATELY FOUR (4) AND EIGHT (8) FT OFF CENTER, SL AND SR.
MID-STAGE TRUSS :
THERE ARE TWO EIGHT (8) FT ALUMINUM TRUSSES MOUNTED TO THE DECK VERTICALLY SLIGHTLY DOWN OF MID-STAGE, AT THE EDGE OF THE TRUSS.
MID-STAGE FIXTURES :
ONE (1) HIGH-END X-SPOT STANDARD MOUNTED AT THE TOP OF EACH TRUSS.
MID-STAGE TRUSS :
THERE ARE TWO EIGHT (8) FT ALUMINUM TRUSSES MOUNTED TO THE DECK VERTICALLY.
|
